Configure a custom telemetry provider for scopes

Extend nullplatform's observability by implementing custom log and metric providers for agent-backed scopes. This guide shows how to configure your provider and channel for any backend, so logs and performance metrics appear in the UI.

When to use this

Use a custom telemetry provider if nullplatform doesn't support your product (for example, Grafana) or if telemetry only exists in a private environment that nullplatform can't reach (for example, an Elasticsearch instance in your infrastructure).

To do this, you'll use the nullplatform agent, which lets you:

Implement and run your own scripts to collect logs and metrics from any provider.
Keep those providers private, because the agent runs in your infrastructure and can access them without exposing them externally.

Prerequisites

You'll need the following before configuring a custom telemetry provider:

The nullplatform agent installed and configured.
An API key with the necessary permissions: agent, developer, and ops.

Configure a custom telemetry provider

To use a custom telemetry provider with nullplatform, you need to configure two things:

The telemetry provider for the scope types you want.
A telemetry notification channel to tell nullplatform where and how to reach your provider.

1. Configure the telemetry provider for a scope type

In nullplatform, you can deploy different application types called scope types. Each scope type can use a different metrics provider.

When using your own provider, configure the platform so that metrics and logs come from an external provider for each scope type that should use it.

You can do this as follows:

CLI
cURL

np nrn patch \
   --nrn "organization=1:account=2:namespace=3:application=4" \
   --body "{
      \"global.${SCOPE_TYPE_SLUG}_metric_provider\": \"externalmetrics\",
      \"global.${SCOPE_TYPE_SLUG}_log_provider\": \"external\"
}"

curl -X PATCH 'https://api.nullplatform.com/nrn/organization=1:account=2:namespace=3:application=4' \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: Bearer <token>' \
  -d '{
   \"global.${SCOPE_TYPE_SLUG}_metric_provider\": \"externalmetrics\",
   \"global.${SCOPE_TYPE_SLUG}_log_provider\": \"external\"
}'

Example configuration

For example, if you use the nullplatform "Containers" scope, the configuration looks like this:

CLI
cURL

np nrn patch \
   --nrn "organization=1:account=2:namespace=3:application=4" \
   --body "{
      \"global.containers_metric_provider\": \"externalmetrics\",
      \"global.containers_log_provider\": \"external\"
}"

curl -X PATCH 'https://api.nullplatform.com/nrn/organization=1:account=2:namespace=3:application=4' \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: Bearer <token>' \
  -d '{
   \"global.containers_metric_provider\": \"externalmetrics\",
   \"global.containers_log_provider\": \"external\"
}'

2. Configure the channel

Once you tell nullplatform that metrics and logs come from your provider, you also need to create a channel to tell nullplatform where and how to reach your provider.

This notification channel will:

Consume "telemetry" notifications.
Use the nullplatform agent as the execution runtime.
Execute a script that points to your implementation.

UI
CLI
cURL

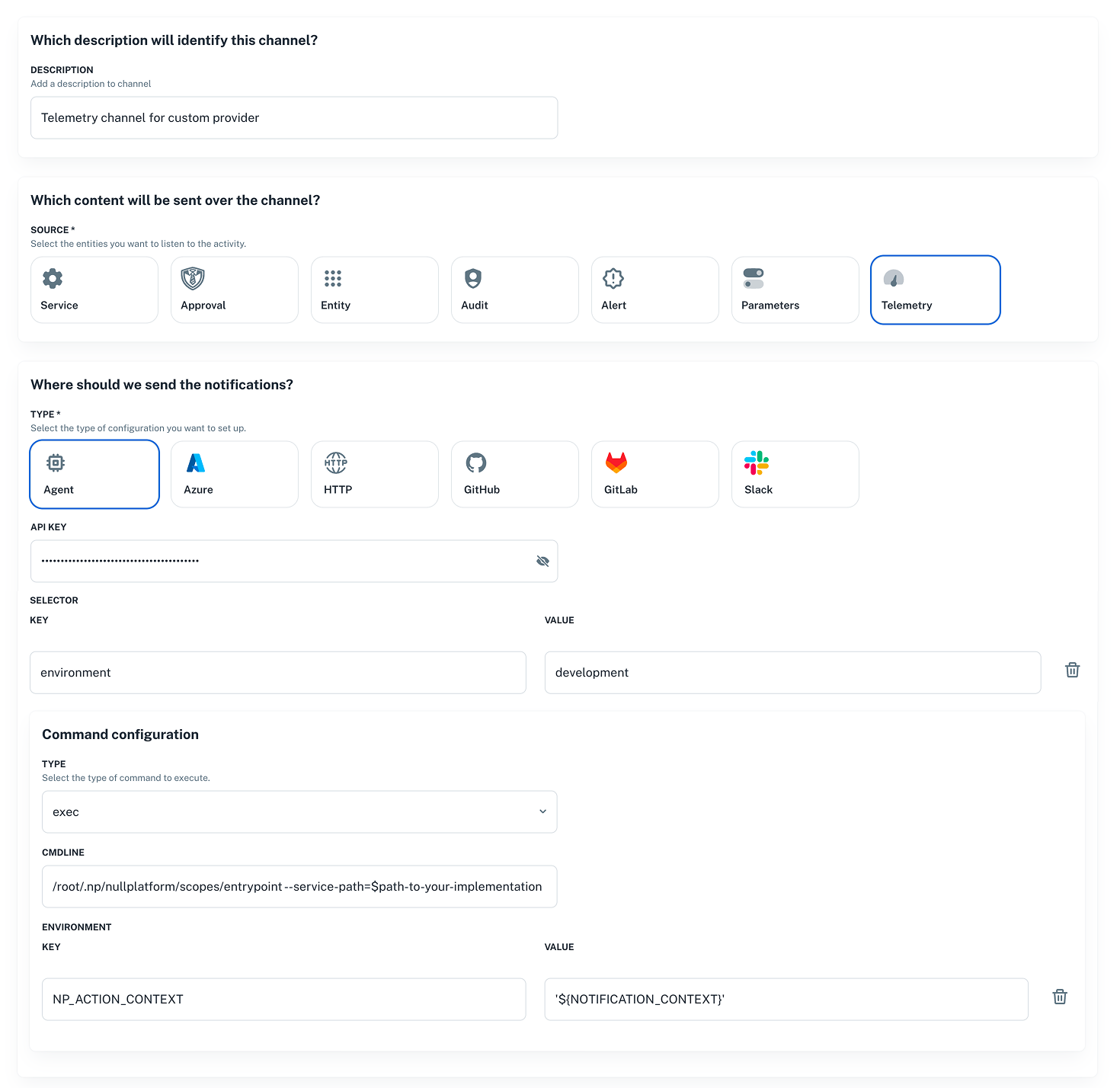

Go to Platform settings > Notifications > Channels and click + New channel.

Send a POST request to the Notification channel endpoint with a body like the following:

curl -X POST 'https://api.nullplatform.com/notification/channel' \
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -H 'Authorization: Bearer <token>' \
  -d '{
   "nrn": "organization=1:account=2:namespace=3:application=4",
   "description": "Telemetry channel for custom provider",
   "source": [
      "telemetry"
   ],
   "type": "agent",
   "configuration": {
      "api_key": "AAAA.1234567890abcdef1234567890abcdefPTs=",
      "command": {
         "data": {
            "cmdline": "/root/.np/nullplatform/scopes/entrypoint --service-path=$path-to-your-implementation",
            "environment": {
               "NP_ACTION_CONTEXT": "'${NOTIFICATION_CONTEXT}'"
            }
         },
         "type": "exec"
      },
      "selector": {
         "environment": "development" // this selectors must match the agent tags.
      }
   },
   "filters": {
      "arguments.scope_provider": {
        "$eq": "$scope-type-id"
      }
   }
}'

Send a POST request using the CLI. See Notification channel endpoint for more details.

np notification channel create \
  --body '{
   "nrn": "organization=1:account=2:namespace=3:application=4",
   "description": "Telemetry channel for custom provider",
   "source": [
      "telemetry"
   ],
   "type": "agent",
   "configuration": {
      "api_key": "AAAA.1234567890abcdef1234567890abcdefPTs=",
      "command": {
         "data": {
            "cmdline": "/root/.np/nullplatform/scopes/entrypoint --service-path=$path-to-your-implementation",
            "environment": {
               "NP_ACTION_CONTEXT": "'${NOTIFICATION_CONTEXT}'"
            }
         },
         "type": "exec"
      },
      "selector": {
         "environment": "development" // this selectors must match the agent tags.
      }
   },
   "filters": {
      "arguments.scope_provider": {
        "$eq": "$scope-type-id"
      }
   }
}'

note

The selectors you define here must match the tags assigned to your agent.

Example command configuration

Suppose your GitHub organization is acme-corp and you have a repo named telemetry that implements a provider named grafana. In that case, the script you configure in the channel would be:

/root/.np/nullplatform/scopes/entrypoint --service-path=/root/.np/acme-corp/telemetry/grafana

Required implementations for logs or metrics

You can implement logs, metrics, or both. Use the operations below based on what you need.

Logs

To implement a logs provider, define the following operations.

Operation	Purpose	Workflow Path
Read logs	Retrieve application logs	`log/workflows/log.yaml`

Read logs

Retrieves application logs from your logging backend. This enables log viewing within the nullplatform UI.

Workflow path

<provider_path>/log/workflows/log.yaml

Input

The following JSON is provided via the NP_ACTION_CONTEXT environment variable:

{
   "action": "log:read",
   "entity_nrn": "organization=1:account=2:namespace=3:application=4:scope=5",
   "arguments": {
      "log_type": "application",
      "application_id": "4",
      "scope_id": "5",
      "limit": 100,
      "start_time": 1769019098258,
      "end_time": 1769018602617,
      "scope_type": "custom",
      "scope_provider": "$scope-type-uuid"
   },
   "scope": {
      "id": 5,
      "slug": "my-scope",
      "name": "my-scope",
      "type": "custom",
      "nrn": "organization=1:account=2:namespace=3:application=4:scope=5",
      "provider": "$scope-type-uuid",
      "profiles": [
         "environment_development",
         "country_argentina"
      ]
   },
   "service": {
      "id": "9a4c1f2e-7b8d-4f6a-9c3e-1d2b8e5a6f40",
      "dimensions": {
         "environment": "development",
         "country": "argentina"
      }
   },
   "parameters": {
      "scope_id": 5
   },
   "tags": {
      "organization_id": "1",
      "organization": "acme-corp",
      "account_id": "2",
      "account": "main",
      "namespace_id": "3",
      "namespace": "acme-namespace",
      "application_id": "4",
      "application": "acme-services-action-app",
      "scope_id": "5",
      "scope": "my-scope"
   }
}

Response format

Your script must output a JSON object to stdout with the following structure:

{
  "results": [
    {
      "datetime": "2024-01-15T10:30:00.000Z",
      "message": "Application started successfully"
    },
    {
      "timestamp": "2024-01-15T10:30:01.500Z",
      "message": "Connected to database"
    }
  ],
  "next_page_token": "eyJwYdlIMDAsInQiOR9="
}

Field	Type	Required	Description
`results`	array	Yes	Array of log entries
`results[].timestamp`	string	Yes	ISO 8601 formatted timestamp
`results[].message`	string	Yes	Log message content
`next_page_token`	string	No	Token for pagination; omit if no more results

Metrics

To implement a metrics provider, define the following operations.

Operation	Purpose	Workflow Path
List available metrics	Enumerate available metrics	`metric/workflows/list.yaml`
Read metric	Fetch time-series metrics	`metric/workflows/metric.yaml`
List instances	List running instances for a scope	`instance/workflows/list.yaml`

List available metrics

Lists the metrics available from your backend for discovery in the nullplatform UI.

Workflow path

<provider_path>/metric/workflows/list.yaml

Input

The following JSON is provided via the NP_ACTION_CONTEXT environment variable:

{
   "action": "metric:list",
   "entity_nrn": "organization=1:account=2:namespace=3:application=4:scope=5",
   "arguments": {
      "application_id": "4",
      "scope_type": "custom",
      "scope_provider": "$scope-type-uuid"
   },
   "scope": {
      "id": 5,
      "slug": "my-scope",
      "name": "my-scope",
      "type": "custom",
      "nrn": "organization=1:account=2:namespace=3:application=4:scope=5",
      "provider": "$scope-type-uuid",
      "profiles": [
         "environment_development",
         "country_argentina"
      ]
   },
   "service": {
      "id": "9a4c1f2e-7b8d-4f6a-9c3e-1d2b8e5a6f40",
      "dimensions": {
         "environment": "development",
         "country": "argentina"
      }
   },
   "parameters": {
      "scope_id": 5
   },
   "tags": {
      "organization_id": "1",
      "organization": "acme-corp",
      "account_id": "2",
      "account": "main",
      "namespace_id": "3",
      "namespace": "acme-namespace",
      "application_id": "4",
      "application": "acme-services-action-app",
      "scope_id": "5",
      "scope": "my-scope"
   }
}

Response format

{
  "results": [
    {
      "name": "http.rpm",
      "title": "Throughput",
      "unit": "rpm",
      "available_filters": ["scope_id", "instance_id"],
      "available_group_by": ["instance_id"]
    },
    {
      "name": "http.response_time",
      "title": "Response Time",
      "unit": "ms",
      "available_filters": ["scope_id", "instance_id"],
      "available_group_by": ["instance_id"]
    },
    {
      "name": "http.error_rate",
      "title": "Error Rate",
      "unit": "%",
      "available_filters": ["scope_id", "instance_id"],
      "available_group_by": ["instance_id"]
    },
    {
      "name": "system.cpu_usage_percentage",
      "title": "CPU Usage",
      "unit": "%",
      "available_filters": ["scope_id", "instance_id"],
      "available_group_by": ["instance_id"]
    },
    {
      "name": "system.memory_usage_percentage",
      "title": "Memory Usage",
      "unit": "%",
      "available_filters": ["scope_id", "instance_id"],
      "available_group_by": ["scope_id", "instance_id"]
    }
  ]
}

Field	Type	Required	Description
`results`	array	Yes	Array of available metrics
`results[].name`	string	Yes	Metric identifier used in API calls
`results[].title`	string	Yes	Human-readable display name
`results[].unit`	string	Yes	Unit of measurement for display
`results[].available_filters`	array	Yes	Supported filter dimensions
`results[].available_group_by`	array	Yes	Supported grouping dimensions

Read metric

Fetches time-series metric data for visualization and alerting in nullplatform.

Workflow path

<provider_path>/metric/workflows/metric.yaml

Input

The following JSON is provided via the NP_ACTION_CONTEXT environment variable:

{
   "action": "metric:data",
   "entity_nrn": "organization=1:account=2:namespace=3:application=4:scope=5",
   "arguments": {
      "metric": "http.error_rate",
      "start_time": "2026-01-21T18:26:49.689Z",
      "end_time": "2026-01-21T18:56:49.689Z",
      "filters": {
         "scope": "my-scope"
      },
      "period": 60,
      "group_by": [],
      "application_id": 4,
      "scope_id": "5",
      "options": {},
      "scope_type": "custom",
      "scope_provider": "$scope-type-uuid"
   },
   "scope": {
      "id": 5,
      "slug": "my-scope",
      "name": "my-scope",
      "type": "custom",
      "nrn": "organization=1:account=2:namespace=3:application=4:scope=5",
      "provider": "$scope-type-uuid",
      "profiles": [
         "environment_development",
         "country_argentina"
      ]
   },
   "service": {
      "id": "9a4c1f2e-7b8d-4f6a-9c3e-1d2b8e5a6f40",
      "dimensions": {
         "environment": "development",
         "country": "argentina"
      }
   },
   "parameters": {
      "scope_id": 5
   },
   "tags": {
      "organization_id": "1",
      "organization": "acme-corp",
      "account_id": "2",
      "account": "main",
      "namespace_id": "3",
      "namespace": "acme-namespace",
      "application_id": "4",
      "application": "acme-services-action-app",
      "scope_id": "5",
      "scope": "my-scope"
   }
}

Supported metric names

The supported metric names are the ones you defined in your metric list implementation.

Response format

{
  "metric": "http.rpm",
  "type": "gauge",
  "period_in_seconds": 60,
  "unit": "count_per_minute",
  "results": [
    {
      "selector": {
        "scope_id": "456",
        "instance_id": "pod-abc123"
      },
      "data": [
        {
          "timestamp": "2024-01-15T10:00:00Z",
          "value": 1250.5
        },
        {
          "timestamp": "2024-01-15T10:01:00Z",
          "value": 1340.2
        }
      ]
    }
  ]
}

Field	Type	Required	Description
`metric`	string	Yes	The metric name
`type`	string	Yes	Metric type (`gauge`, `counter`)
`period_in_seconds`	number	Yes	Data point aggregation period
`unit`	string	Yes	Unit of measurement
`results`	array	Yes	Array of time series
`results[].selector`	object	Yes	Labels identifying the series
`results[].data`	array	Yes	Array of data points
`results[].data[].timestamp`	string	Yes	ISO 8601 timestamp
`results[].data[].value`	number	Yes	Metric value

List instances

Lists running instances (pods, containers, VMs) for a scope so you can filter metrics per instance in nullplatform.

Workflow path

<provider_path>/instance/workflows/list.yaml

Input

The following JSON is provided via the NP_ACTION_CONTEXT environment variable:

{
   "action": "instance:data",
   "entity_nrn": "organization=1:account=2:namespace=3:application=4:scope=5",
   "arguments": {
      "application_id": [
         "4"
      ],
      "scope_id": [
         "5"
      ],
      "scope_type": "custom",
      "scope_provider": "$scope-type-uuid"
   },
   "scope": {
      "id": 5,
      "slug": "my-scope",
      "name": "my-scope",
      "type": "custom",
      "nrn": "organization=1:account=2:namespace=3:application=4:scope=5",
      "provider": "$scope-type-uuid",
      "profiles": [
         "environment_development",
         "country_argentina"
      ]
   },
   "service": {
      "id": "9a4c1f2e-7b8d-4f6a-9c3e-1d2b8e5a6f40",
      "dimensions": {
         "environment": "development",
         "country": "argentina"
      }
   },
   "parameters": {
      "scope_id": 5
   },
   "tags": {
      "organization_id": "1",
      "organization": "acme-corp",
      "account_id": "2",
      "account": "main",
      "namespace_id": "3",
      "namespace": "acme-namespace",
      "application_id": "4",
      "application": "acme-services-action-app",
      "scope_id": "5",
      "scope": "my-scope"
   }
}

Response format

{
  "results": [
    {
      "id": "pod-abc123-xyz",
      "selector": {
        "application_id": "123",
        "scope_id": "456",
        "deployment_id": "789"
      },
      "details": {
        "namespace": "production",
        "ip": "10.0.1.50",
        "dns": "10.0.1.50.production.pod.cluster.local",
        "cpu": {
          "requested": 0.25,
          "limit": 0.5
        },
        "memory": {
          "requested": "256Mi",
          "limit": "512Mi"
        },
        "architecture": "x86"
      },
      "state": "Running",
      "launch_time": "2024-01-15T08:00:00Z",
      "spot": false
    }
  ]
}

Field	Type	Required	Description
`results`	array	Yes	Array of instance objects
`results[].id`	string	Yes	Unique instance identifier
`results[].selector`	object	Yes	Labels/metadata for filtering
`results[].details`	object	Yes	Instance details
`results[].details.namespace`	string	No	Deployment namespace
`results[].details.ip`	string	No	Instance IP address
`results[].details.dns`	string	No	Instance DNS name
`results[].details.cpu`	object	No	CPU resource allocation
`results[].details.cpu.requested`	number	No	Requested CPU cores
`results[].details.cpu.limit`	number	No	CPU limit in cores
`results[].details.memory`	object	No	Memory resource allocation
`results[].details.memory.requested`	string	No	Requested memory
`results[].details.memory.limit`	string	No	Memory limit
`results[].details.architecture`	string	No	CPU architecture (x86, arm64)
`results[].state`	string	Yes	Instance state (Running, Pending, etc.)
`results[].launch_time`	string	Yes	ISO 8601 launch timestamp
`results[].spot`	boolean	No	Whether instance is a spot/preemptible instance

Best practices

Error Handling: Always return valid JSON, even on errors. Use the empty results pattern:
```
{"metric":"","type":"","period_in_seconds":0,"unit":"","results":[]}
```
Pagination: Implement pagination for log endpoints to handle large result sets efficiently.
Logging: Logs and metrics are read by the agent from standard output, so don't print logs while processing telemetry. That would break the JSON format the agent sends to the nullplatform API.

When to use this​

Prerequisites​

Configure a custom telemetry provider​

1. Configure the telemetry provider for a scope type​

Example configuration​

2. Configure the channel​

Example command configuration​

Required implementations for logs or metrics​

Logs​

Read logs​

Workflow path​

Input​

Response format​

Metrics​

List available metrics​

Workflow path​

Input​

Response format​

Read metric​

Workflow path​

Input​

Supported metric names​

Response format​

List instances​

Workflow path​

Input​

Response format​

Best practices​

When to use this

Prerequisites

Configure a custom telemetry provider

1. Configure the telemetry provider for a scope type

Example configuration

2. Configure the channel

Example command configuration

Required implementations for logs or metrics

Logs

Read logs

Workflow path

Input

Response format

Metrics

List available metrics

Workflow path

Input

Response format

Read metric

Workflow path

Input

Supported metric names

Response format

List instances

Workflow path

Input

Response format

Best practices
