Serverless functions running on AWS Lambda

Overview​

Nullplatform supports AWS Lambda as a target for serverless scopes. When you define a scope with the Lambda target, it represents a specific AWS Lambda deployment environment, complete with region-specific configuration.

Use case: multi-region deployment​

Deploying AWS Lambda functions across multiple regions requires additional configuration due to a key AWS constraint: the S3 bucket hosting the deployment asset must reside in the same region as the Lambda function itself.

For example, a Lambda in sa-east-1 (São Paulo) cannot access an asset stored in an S3 bucket located in us-east-1 (Virginia).

To work around this limitation, you can use S3 replication and configure your CI pipeline to register separate assets for each region within nullplatform.

Steps to deploy across multiple AWS regions​

1. Create a regional S3 bucket​

Create a new S3 bucket in the target region where you want to deploy the Lambda function (e.g., sa-east-1).

2. Set up S3 replication​

Configure S3 replication from the source bucket (e.g., us-east-1) to the newly created target bucket (e.g., sa-east-1).

ℹ️ Note: See the S3 Replication Walkthrough (AWS Docs) for more information.

3. Extend your CI pipeline​

Update your CI pipeline to:

  • Fetch the current build
  • Identify the original asset created in the source bucket
  • Rewrite the asset URL to point to the replicated bucket
  • Register a second asset in nullplatform, scoped for the target region

Here is a sample Bash script to automate this step:

#!/bin/bash

# Replace this with the name of the bucket in sa-east-1
replicated_bucket=replication_bucket_name

# Replace this with the name you want to identify the sa-east-1 asset in the nullplatform UI.
# We recommend using the name of the region so it is clear where it will be deployed.
replicated_asset_name=replication_asset

application_id=$(np application current --format json | jq -r '.id')

build=$(np build list --application_id "$application_id" --format json | jq -r 'first(.results[] | select(.status == "in_progress"))')

build_id=$(echo $build | jq '.id' -r)

original_asset=$(np asset list --build-id $build_id --format json | jq -r ".results[0]")
original_asset_path=$(echo $original_asset | jq -r ".url")

replicated_asset_path=$(echo "$original_asset_path" | sed -E "s#^(s3://)[^/]+#\1$replicated_bucket#")

np asset create --body "{
    \"type\": \"lambda\",
    \"url\": \"$replicated_asset_path\",
    \"name\": \"$replicated_asset_name\",
    \"build_id\": "$build_id",
    \"application_id\": "$application_id",
    \"metadata\":{}
}"

4 Configure AWS credentials and region via Providers​

Use nullplatform’s provider configuration to ensure that each scope has the correct AWS credentials and region.

For example:

  • Set production scopes to use sa-east-1
  • Set development scopes to use us-east-1

ℹ️ Note: See our docs for configuring AWS as a provider).

What it looks like in the UI​

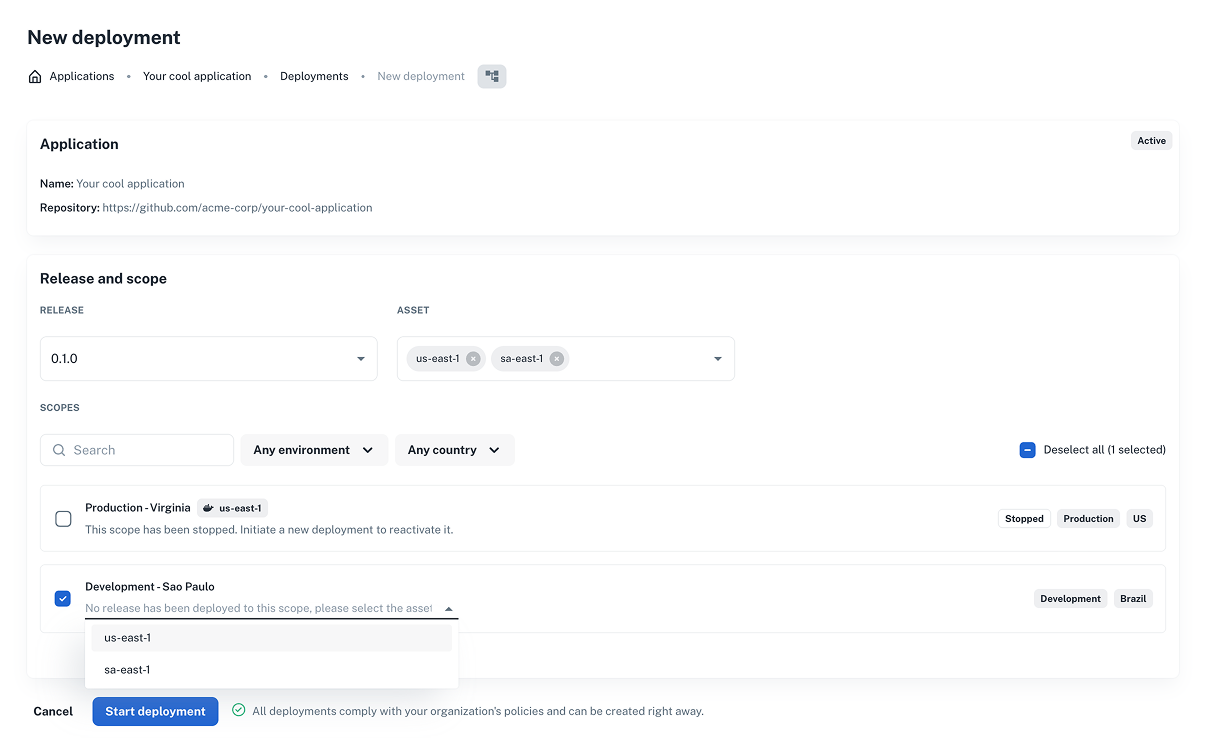

Once you’ve configured scopes for multiregion Lambda deployment, you’ll be able to select them in the New Deployment flow.

  1. Go to Deployments > + New Deployment
  2. Select the appropriate asset and scopes
  3. You’ll see region-specific options for your Lambda scopes
lambda multiregion
