Configurable HTTP ports

Containers scopes can bind the main HTTP listener to any port and expose extra HTTP ports alongside it. Both options live under the Exposed Ports section of the scope form.

What it solves​

Not every application binds to 8080, and some need to expose more than one HTTP listener. With configurable HTTP ports you can:

  • Pick the port your application binds to inside the container, with 8080 as the default
  • Add extra HTTP listeners next to the main one, each with its own service and ingress

Typical use cases: a metrics endpoint on a different port, a webhook receiver, or a legacy app that binds to 9090 instead of 8080.

Prerequisites​

The traffic-manager sidecar image must be version 1.5.0 or later. Older images ignore the new UPSTREAM_PORT environment variable and continue to route to 8080, which breaks any scope that sets a custom main HTTP port.

ℹ️ Make sure the cluster pulls a compatible image before enabling the feature on production scopes.

Configuration​

Main HTTP port​

The main_http_port capability sets the port your application binds to inside the container. Nullplatform threads it through the Service, Ingress, container port, liveness/readiness/startup probes, and the traffic-manager sidecar automatically. No additional changes are required.

PropertyValue
Default8080
Valid range1024 to 65535
RequiredYes (default is applied if you don't set it)
info

Ports below 1024 are reserved for privileged processes and are not allowed.

Send a PATCH request to update the scope capabilities:

  1. Open the scope form in the nullplatform UI.
  2. Under ADVANCED → Exposed Ports, set Main HTTP Port to the value your application binds to.
  3. Save and deploy. The platform reconciles ingress, service, and probes automatically.

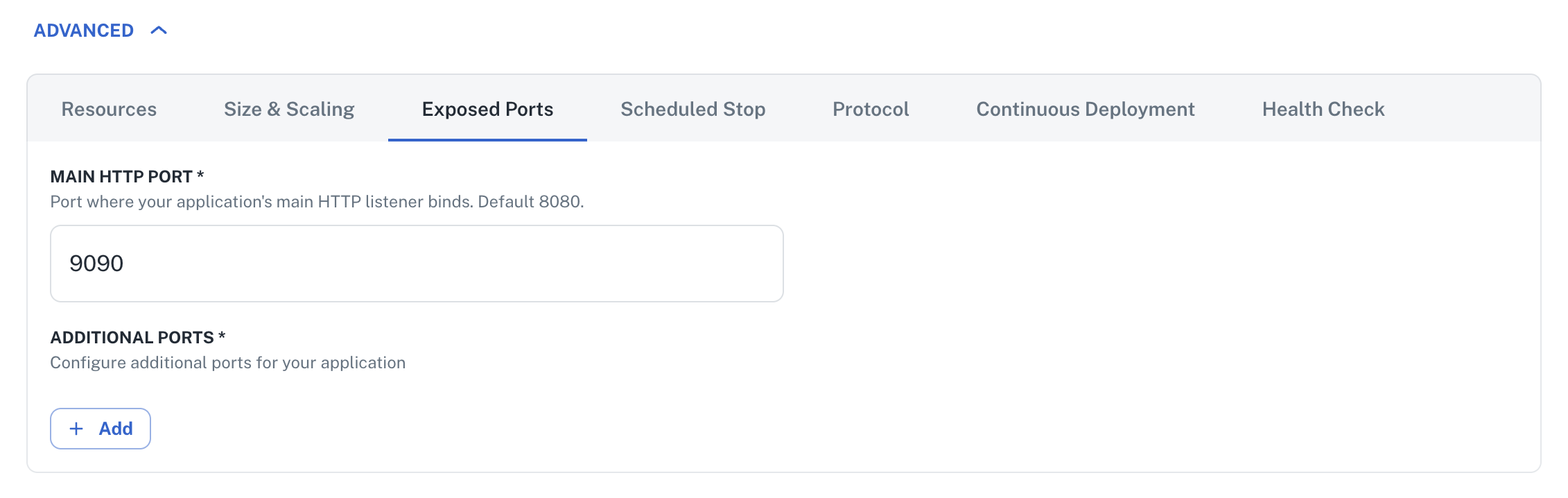

Scope form Exposed Ports section with the Main HTTP Port field

HTTP additional ports​

The additional_ports capability accepts entries of type HTTP (in addition to the existing GRPC type). Each HTTP additional port creates its own Service, Ingress, and traffic-manager sidecar.

The port becomes reachable externally over HTTPS at the same hostname as the scope, on the configured port. A scope at https://my-app.example.com with an additional port 9090 is reachable at https://my-app.example.com:9090. SSL termination happens at the ALB using the same wildcard certificate as the main listener, so no extra TLS configuration is required.

Existing GRPC additional ports keep working without changes.

  1. Open the scope form in the nullplatform UI.
  2. Under ADVANCED → Exposed Ports → Additional Ports, add an entry.
  3. Set type to HTTP and port to the value your application binds to.
  4. Save and deploy.

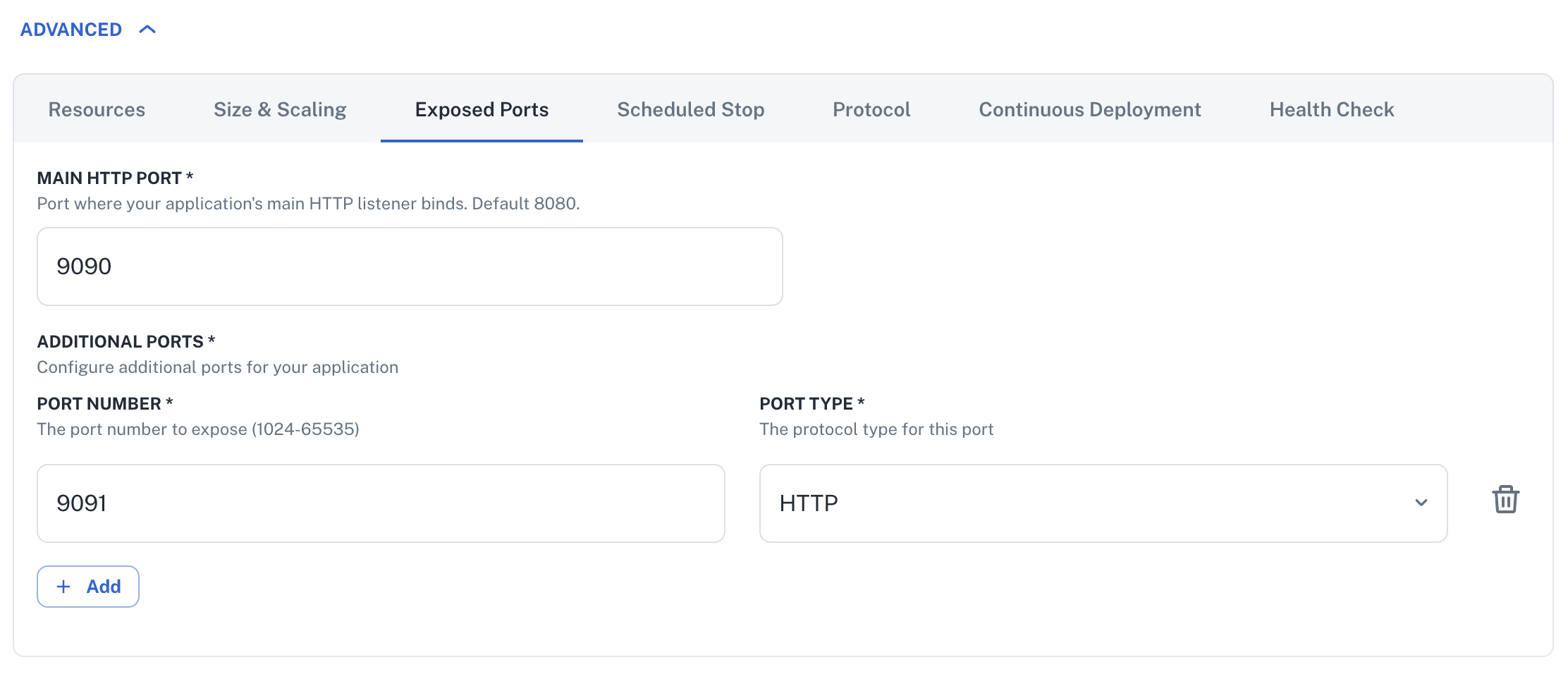

Scope form Exposed Ports section with the additional HTTP Port field

ALB capacity considerations​

Each additional port (HTTP or GRPC) opens a dedicated listener on the shared Application Load Balancer. The main scope ingress keeps using the standard :80 and :443 listeners, which are shared across all scopes by hostname. Additional ports are not shared between scopes: each port number gets its own listener.

AWS enforces a hard quota of 50 listeners per ALB. Nullplatform validates the listener count before each deployment and rejects the deploy if it would exceed ALB_MAX_LISTENERS (default 48, which leaves 2 slots of safety margin).

If a deploy fails with a listener capacity error, the options are:

  • Reduce the number of additional ports across the scopes sharing the ALB
  • Move one or more scopes to a separate ALB
  • Request an AWS service-quota increase for listeners per ALB (limited adjustability)
info

Listeners are cleaned up automatically. The AWS Load Balancer Controller owns the listener lifecycle: when the last Ingress referencing a particular listener is deleted, the controller removes it from the ALB. Deleting a deployment is enough to reclaim its listener slots. If multiple scopes share the same additional port number on the same ALB, the listener stays until all of them are deleted.

Backward compatibility​

The change is fully backward-compatible:

  • Scopes that don't set main_http_port keep using 8080 everywhere. No migration is required.
  • Existing additional ports configured as GRPC continue to work without changes.
  • The traffic-manager image defaults UPSTREAM_PORT to 8080 when the env is missing, so an upgraded image with un-upgraded scope templates behaves like the old image.
